1438956 | Phoenix Contact
Sensor actuator cable, valve connector DIN shape A to open end, 4 pole, 3 m, PUR, black, 4 A, 1438956
Order No.: 61P6243
EAN: 4046356489003
MPN:
1438956
SAC-4P-3,0-PUR/AD
Unit Price (€ / pc.)
26.5489 € *
Available: 0 pcs.
Leadtime: On Request **

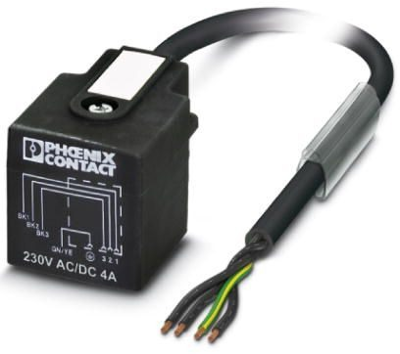

Sensor/actuator cable, 1438956, Phoenix Contact
Sensor/actuator cable, 4-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on valve connector AD (pressure switch), Cable length: 3 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Our standard: robust halogen-free PUR cable
Technical specifications
| Connection (1) | valve connector DIN shape A | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 3 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 230 V | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
