1436204 | Phoenix Contact

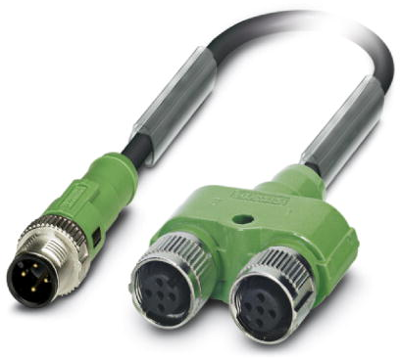

Sensor actuator cable, M12-cable plug, straight to 2 x M12 cable socket, straight, 4 pole, 0.3 m, PUR, black, 4 A, 1436204

Order No.: 61P6816
EAN: 4046356432450
MPN:
1436204
SAC-4PY-MS- 0,3-PUR/2XF
Series: SAC-4P
1436204 Phoenix Contact Sensor-Actuator Cables Image 1
1436204 Phoenix Contact Sensor-Actuator Cables Image 2
1436204 Phoenix Contact Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
41.1145 € *
Available in 10 days: 272 pcs. - if ordered today
Total Price:
41.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
41.1145 €

Sensor/actuator cable, 1436204, Phoenix Contact

Sensor/actuator cable, 4-position, PUR halogen-free, Black-gray RAL 7021, Plug straight M12 SPEEDCON, Coding: A, on socket straight, M12 SPEEDCON, Coding: A and Socket straight M12 SPEEDCON, Coding: A, Cable length: 0.3 m

Technical specifications
Filter Property Value
Connection (1) M12-cable plug, straight
Connection (2) 2 x M12 cable socket, straight
Pin number 4 pole
Cable length 0.3 m
Colour black
Material PUR
Degree of protection (IP) IP65/IP67
LED display No
max. Voltage 48 V
Rated current 4 A
Logistics
Property Value
Customs tariff number 85444290
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
