1435412 | Phoenix Contact

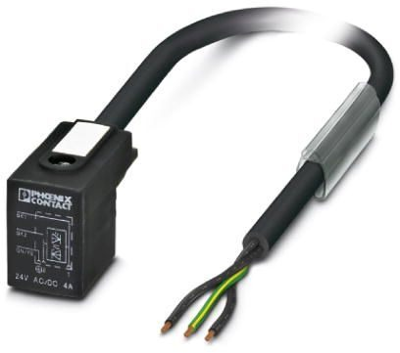

Sensor actuator cable, valve connector DIN shape B to open end, 3 pole, 10 m, PUR, black, 4 A, 1435412
Order No.: 61P5354
EAN: 4046356413718
MPN:
1435412
SAC-3P-10,0-PUR/B-1L-Z
Unit Price (€ / pc.)
45.0415 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor/actuator cable, 1435412, Phoenix Contact
Sensor/actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on valve connector B (10 mm), with 1 LED, Connected with Z diode, Cable length: 10 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Convenient: increased machine availability thanks to quick and easy diagnostics
- Our standard: robust halogen-free PUR cable
Technical specifications
| Connection (1) | valve connector DIN shape B | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 10 m | |
| LED display | Yes | |
| Material | PUR | |
| max. Voltage | 24 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
