1431432 | Phoenix Contact
Sensor actuator cable, M12-cable plug, straight to open end, 3 pole, 0.5 m, 4 A, 1431432
Unit Price (€ / pc.)
39.3652 € *
Available in 10 days: 5 pcs. - if ordered today
Bus system cable, 1431432, Phoenix Contact

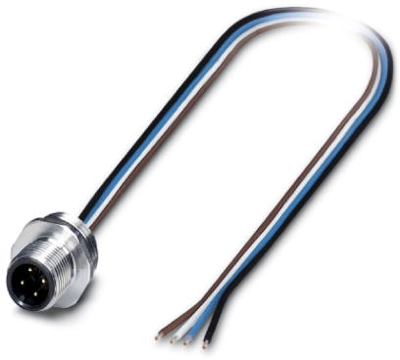

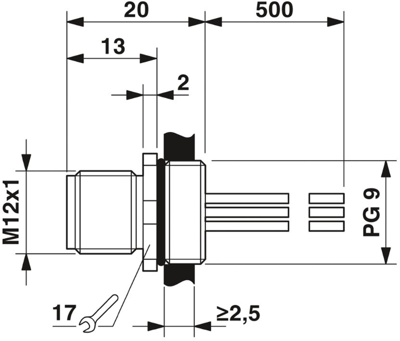

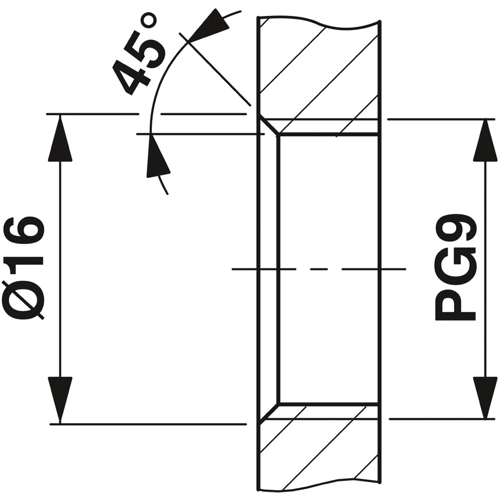

Bus system flush-type connector, FOUNDATION Fieldbus, plug, 4-position, M12, A-coded, Front/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 3 x 0.34 mm², stainless steel version
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- Cable designs for all common networks and fieldbuses
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Pin number | 3 pole | |
| Connection (2) | open end | |
| LED display | No | |
| Cable length | 0.5 m | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Degree of protection (IP) | IP67 | |
| Connection (1) | M12-cable plug, straight |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
