1424602 | Phoenix Contact

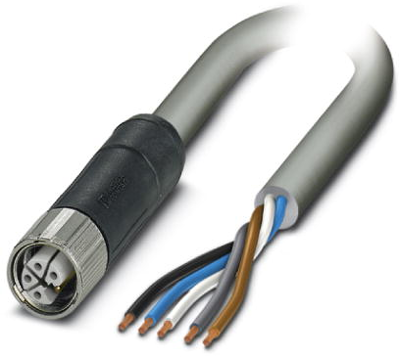

Sensor actuator cable, M12-cable socket, straight to open end, 5 pole, 3 m, PUR, gray, 12 A, 1424602
Order No.: 61P6880
EAN: 4055626375274
MPN:
1424602
SAC-5P- 3,0-290/M12FSL FE
Unit Price (€ / pc.)
61.166 € *
Available: 0 pcs.
Leadtime: On Request **
Power cable, 1424602, Phoenix Contact
Power cable, 5-position, PUR halogen-free, Gray RAL 7001, Socket straight M12, Coding: L, on free cable end, Cable length: 3 m, for direct current up to 12 A/63 V
Features
- Easy and safe: 100% electrically tested plug-in components
- Protection against mismatching, thanks to special L-coding
- Our standard: robust halogen-free PUR cable
Technical specifications
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Colour | gray | |
| Cable length | 3 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 63 V | |
| Rated current | 12 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
