1424138 | Phoenix Contact

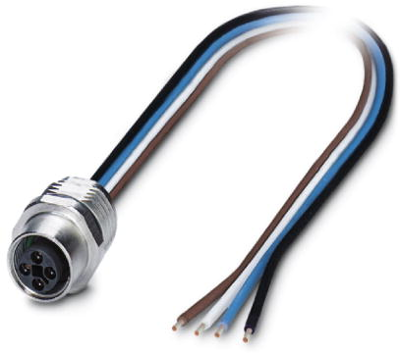

Sensor actuator cable, M12-flange socket, straight to open end, 4 pole, 0.5 m, 12 A, 1424138
Unit Price (€ / pc.)
22.2054 € *
Available: 14 pcs.
Available in 10 days: 114 pcs.
Leadtime: 2 Weeks **
Total Price:
22.21 € *
Price list
Quantity
Price per unit*
1 pcs.
22.2054 €
5 pcs.
20.8726 €
15 pcs.
20.0872 €
50 pcs.
19.1947 €
150 pcs.
18.3855 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power connector, 1424138, Phoenix Contact
Flush-type connector, Power, 4-position, Socket, M12, Front mounting, Square flange, Individual wires, cable length: 3 m, 0.34 mm², UL/cUL stranded hook-up wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- T-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmitting high power
- For high transmission safety
Technical specifications
| Connection (1) | M12-Flanschbuchse, gerade | |
| Connection (2) | offenes Ende | |
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 63 V | |
| Rated current | 12 A | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
