1419991 | Phoenix Contact

Panel plug, M12, 4 pole, straight, 1419991

Order No.: 61P9442
EAN: 4046356533812
MPN:
1419991
SACC-SQ-M12MS-4CON-25F/0,5
Series: SACC
1419991 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
26.4061 € *
Available in 10 days: 139 pcs. - if ordered today
Total Price:
26.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.4061 €

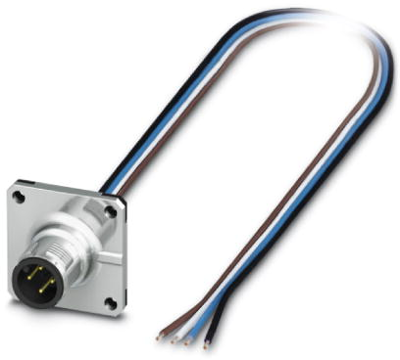

Sensor-actuator connector, 1419991, Phoenix Contact

Flush-type connector, 4-position, M12, Front mounting, Square flange, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • Fast locking system
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67

Applications

  • For transmission of signals
  • For data transimission
Technical specifications
Orientation straight
Additional parts equipped
Product type panel plug
Pin number 4 pole
Thread size M12
Version cable 0.5 m
Logistics
Customs tariff number 85444290
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
