1419409 | Phoenix Contact

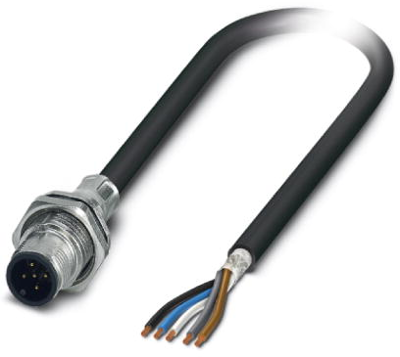

Sensor actuator cable, M12-cable plug, straight to open end, 5 pole, 1 m, PUR, black, 4 A, 1419409
Order No.: 61P8224
EAN: 4046356533287
MPN:
1419409
SACCBP-MS-5CON-M16/1,0-PUR SCO
Unit Price (€ / pc.)
62.4155 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Device connector, 1419409, Phoenix Contact
Flush-type plug, Shielded, 5-position, M12, A-coded, Rear/screw mounting with M16 thread, with 1 m cable, 5 x 0.34 mm²
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 1 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
