1419357 | Phoenix Contact

Sensor actuator cable, M12-cable socket, straight to open end, 8 pole, 1 m, PUR, black, 2 A, 1419357

Order No.: 61P8143
EAN: 4046356533331
MPN:
1419357
SACCBP-FS-8CON-M16/1,0-PUR SCO
Series: SACCBP

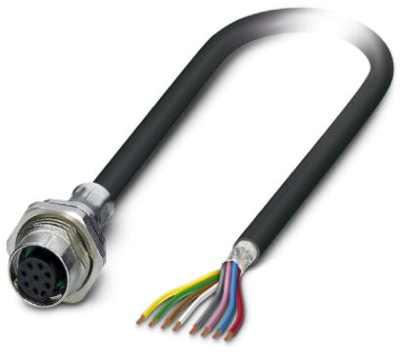

1419357 Phoenix Contact Sensor-Actuator Cables Image 1

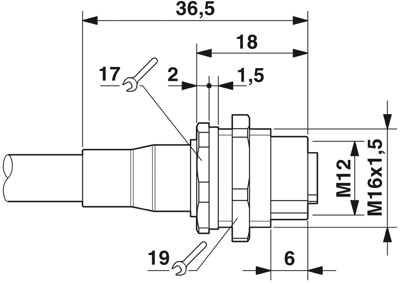

1419357 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
76.8383 € *
Available: 1 pcs.
Available in 10 days: 252 pcs.
Leadtime: 2 Weeks **
Total Price:
76.84 € *
Price list
Quantity
Price per unit*
1 pcs.
76.8383 €
5 pcs.
72.2330 €
15 pcs.
69.4603 €
50 pcs.
66.3901 €
150 pcs.
63.6174 €
*incl. VAT plus shipping costs
**Subject to prior sale

Device connector, 1419357, Phoenix Contact

Flush-type socket, Shielded, 8-position, M12, A-coded, Rear/screw mounting with M16 thread, with 1 m cable, 8 x 0.25 mm²

Features

  • Pre-assembled with cables in various standard lengths for immediate use
  • Customer-specific assemblies and cable lengths can be supplied
  • Sealed on the cable side for optimum tightness of seal
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
Connection (1) M12-Kabeldose, gerade
Connection (2) offenes Ende
Pin number 8-polig
Cable length 1 m
Colour schwarz
Material PUR
Degree of protection (IP) IP65/IP67
LED display No
max. Voltage 30 V
Rated current 2 A
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
