1419167 | Phoenix Contact

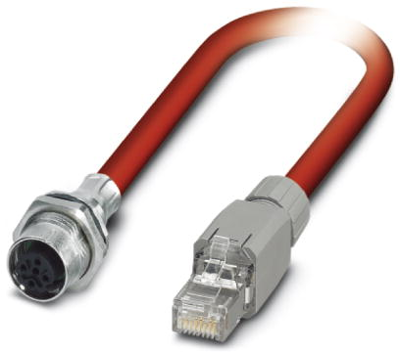

Sensor actuator cable, M12-cable socket, straight to RJ45-cable plug, straight, 4 pole, 2 m, PVC, red, 1419167
Unit Price (€ / pc.)
97.6871 € *
Standard delivery time from the manufacturer is: 9 Weeks
Bus system cable, 1419167, Phoenix Contact

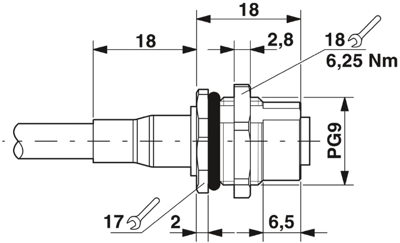

Assembled Sercos III cable, Shielded, star quad, AWG 22 stranded (7-wire), RAL 3020 (traffic red), M12 flush-type socket, rear mounting, SPEEDCON 4-pos. on free RJ45 connector/IP20, Length: 2 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, straight | |
| max. Voltage | 600 V | |
| LED display | No | |
| Cable length | 2 m | |
| Colour | red | |
| Pin number | 4 pole | |
| Connection (2) | RJ45-cable plug, straight | |
| Degree of protection (IP) | IP20 | |
| Material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444210 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
