1419155 | Phoenix Contact

Sensor actuator cable, M12-cable socket, straight to open end, 4 pole, 1 m, PUR, red, 4 A, 1419155

Order No.: 62P5371
EAN: 4046356541015
MPN:
1419155
VS-FSDBPS-OE-93K-LI/1,0
Series: VS-FSDBPS

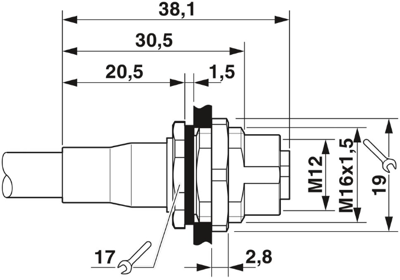

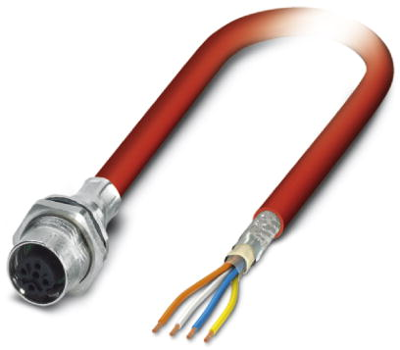

1419155 Phoenix Contact Sensor-Actuator Cables Image 1
1419155 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
62.5583 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
62.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
62.5583 €

Network cable, 1419155, Phoenix Contact

Network cable, PROFINET CAT5 (100 Mbps) CAT5 (100 Mbps), 4-position, PVC halogen-free, green RAL 6018, Shielded, Flush-type female connector, Straight, M12-SPEEDCON, D-coded, on free cable end, Cable connection, Cable length: 5 m, PROFINET, Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) 1239234

Features

  • Pre-assembled with cables in various standard lengths for immediate use
  • Customer-specific assemblies and cable lengths can be supplied
  • Sealed on the cable side for optimum tightness of seal
  • Cable designs for all common networks and fieldbuses
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
Connection (1) M12-cable socket, straight
Connection (2) open end
Pin number 4 pole
Cable length 1 m
Colour red
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 250 V
Rated current 4 A
Logistics
Country of origin DE
Customs tariff number 85444210
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
