1415925 | Phoenix Contact
Sensor actuator cable, valve connector DIN shape B to open end, 3 pole, 1.5 m, PVC, black, 4 A, 1415925
Order No.: 61P5142
EAN: 4055626054902
MPN:
1415925
SAC-3P- 1,5-PVC/B-1L-V
Unit Price (€ / pc.)
25.2637 € *
Available: 0 pcs.
Leadtime: On Request **

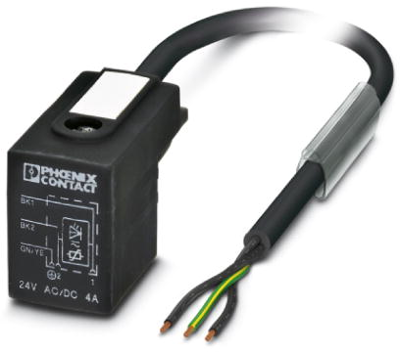

Sensor/actuator cable, 1415925, Phoenix Contact
Sensor/actuator cable, 3-position, PVC, Black RAL 9005, Free cable end, on valve connector B (10 mm), with 1 LED, Connected with varistor, Cable length: 1.5 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications
| Connection (1) | valve connector DIN shape B | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 1.5 m | |
| LED display | Yes | |
| Material | PVC | |
| max. Voltage | 24 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
