1414895 | Phoenix Contact

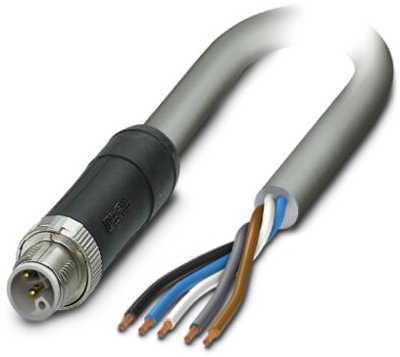

Sensor actuator cable, M12-cable plug, straight to open end, 5 pole, 10 m, PUR, gray, 16 A, 1414895
Order No.: 65P0463
EAN: 4055626035253
MPN:
1414895
SAC-5P-M12MSL/10,0-280 FE
Unit Price (€ / pc.)
123.046 € *
Available: 0 pcs.
Leadtime: On Request **
Power cable, 1414895, Phoenix Contact
Power cable, 5-position, PUR halogen-free, Gray RAL 7001, Plug straight M12, Coding: L, on free cable end, Cable length: 10 m, for direct current up to 16 A/63 V
Features
- Easy and safe: 100% electrically tested plug-in components
- Protection against mismatching, thanks to special L-coding
- Our standard: robust halogen-free PUR cable
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | open end | |
| Colour | gray | |
| Cable length | 10 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 63 V | |
| Rated current | 16 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
