1411592 | Phoenix Contact

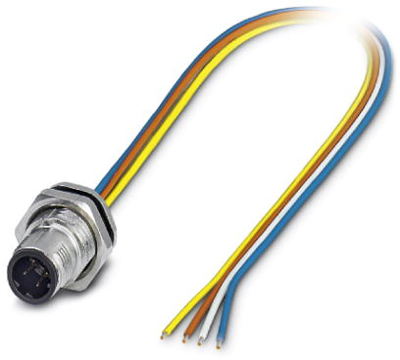

Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 0.5 m, TPE, 4 A, 1411592
Order No.: 61P8717
EAN: 4046356935869
MPN:
1411592
SACC-DSI-M12MSD-4P-M16XL/0,5
Unit Price (€ / pc.)
22.491 € *
Available: 0 pcs.
Leadtime: On Request **
Bus system cable, 1411592, Phoenix Contact

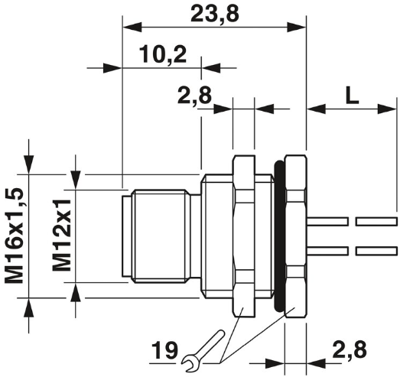

Bus system flush-type plug, PROFINET, 4-position, M12 SPEEDCON, D-coded, Rear/screw mounting with M16 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm²
Features
- Easy-to-install, optimized XL housing contour with wrench size 19
- Mechanical tightening limitation for long-term-stable gasket
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | open end | |
| Cable length | 0.5 m | |
| LED display | No | |
| Material | TPE | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
