1411585 | Phoenix Contact
Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 0.5 m, TPE, 4 A, 1411585
Unit Price (€ / pc.)
22.9075 € *
Standard delivery time from the manufacturer is: 8 Weeks

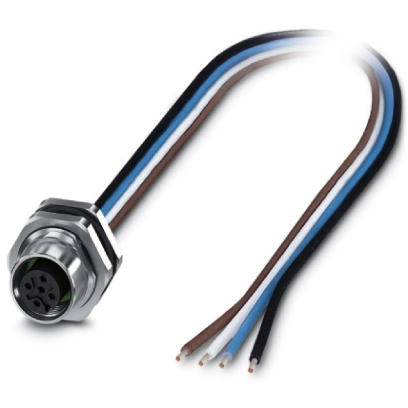

Device connector, 1411585, Phoenix Contact

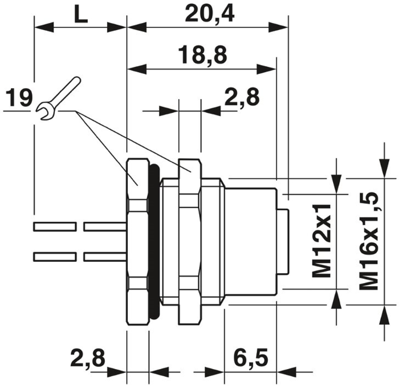

Device connector, rear mounting, PROFINET CAT5 (IEC 11801:2002), 4-position, Flush-type female connector, Straight, M12-Standard, D, on free cable end, Rear mounting, M16 x 1.5, Individual wires, Cable length: 0.5 m, 0.34 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) 1238884
Features
- Easy-to-install, optimized XL housing contour with wrench size 19
- Mechanical tightening limitation for long-term-stable gasket
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable plug, straight | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| LED display | No | |
| max. Voltage | 250 V | |
| Degree of protection (IP) | IP67 | |
| Cable length | 0.5 m | |
| Connection (2) | open end | |
| Material | TPE |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
