1410728 | Phoenix Contact
Sensor actuator cable, cable socket to open end, 2 pole, 1.5 m, PUR, black, 8 A, 1410728
Order No.: 61P4995
EAN: 4046356924276
MPN:
1410728
SAC-2P- 1,5-PUR/DTFS-1L
Unit Price (€ / pc.)
29.4049 € *
Available: 0 pcs.
Leadtime: On Request **

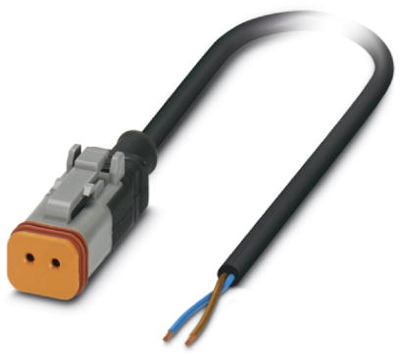

Sensor/actuator cable, 1410728, Phoenix Contact

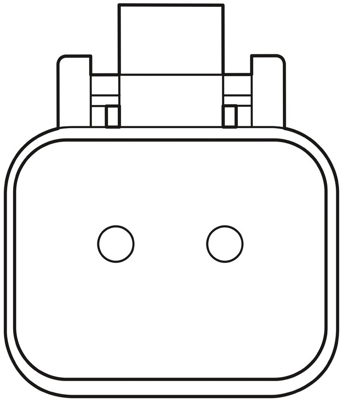

Sensor/actuator cable, 2-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on socket straight, DEUTSCH DT06-2S clip locking, with 1 LED, Cable length: 1.5 m, Customer version
Features
- Easy and safe: 100% electrically tested plug-in components
Technical specifications
| Connection (1) | cable socket | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 1.5 m | |
| LED display | Yes | |
| Material | PUR | |
| max. Voltage | 24 V | |
| Rated current | 8 A | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
