1407324 | Phoenix Contact

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, straight, 4 pole, 5 m, PE-X, black, 4 A, 1407324

Order No.: 61P6797
EAN: 4046356774406
MPN:
1407324
SAC-4P-MS/5,0-28R/FS SCO RAIL
Series: SAC-4P

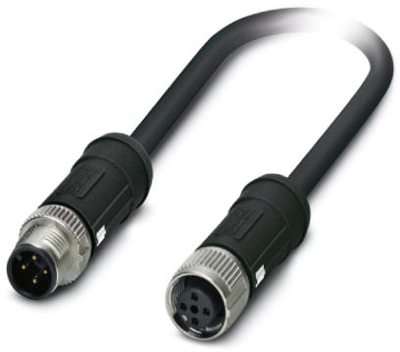

1407324 Phoenix Contact Sensor-Actuator Cables Image 1

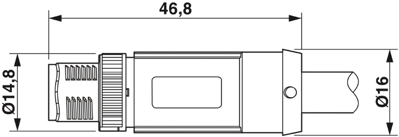

1407324 Phoenix Contact Sensor-Actuator Cables Image 2

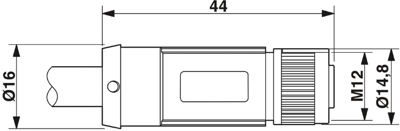

1407324 Phoenix Contact Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
86.751 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
86.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
86.751 €

Sensor/actuator cable, 1407324, Phoenix Contact

Sensor/actuator cable, 4-position, PE-X halogen-free, Black RAL 9005, Shielded, Plug straight M12 SPEEDCON, Coding: A, on socket straight, M12 SPEEDCON, Coding: A, Cable length: 5 m, for railway applications

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Securely locked by special vibration brake
  • Resistant to temperature influences – tested for an extended temperature range and for resistance to temperature shocks
  • Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Technical specifications
Filter Property Value
Connection (1) M12-cable plug, straight
Connection (2) M12-cable socket, straight
Pin number 4 pole
Cable length 5 m
Colour black
Material PE-X
Degree of protection (IP) IP65
LED display No
max. Voltage 250 V
Rated current 4 A
Logistics
Property Value
Country of origin PL
Customs tariff number 85444290
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description 1,6,7,8,9,14,15,16,17,17,18,18-Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)
Date of RoHS guidelines 3/31/15
