1407308 | Phoenix Contact

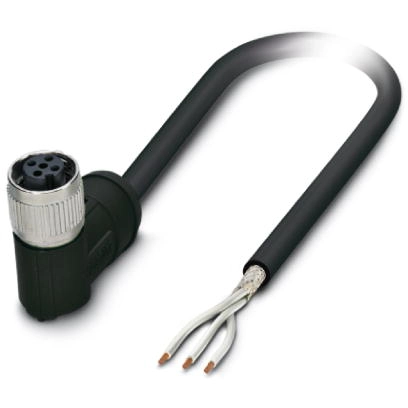

Sensor actuator cable, M12-cable socket, angled to open end, 3 pole, 10 m, PE-X, black, 4 A, 1407308
Order No.: 61P5325
EAN: 4046356774246
MPN:
1407308
SAC-3P-10,0-28R/FR SCO RAIL
Sensor/actuator cable, 1407308, Phoenix Contact
Sensor/actuator distributor cable assembled on both sides 4position 2 x M12 socket angled M12 plug axial 2 m.
Features
- Easy and safe: 100% electrically tested plug-in components
- Safety through flame retardancy: handle body made of PA 6.6 and radiation-crosslinked cables meet the highest requirements
- Safely locked due to special vibration brake
- Resistant to temperature effects - tested for extended temperature range and against thermal shocks
- Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, angled | |
| Connection (2) | open end | |
| Pin number | 3 pole | |
| Cable length | 10 m | |
| Colour | black | |
| Material | PE-X | |
| Degree of protection (IP) | IP65 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
