1406857 | Phoenix Contact

Sensor actuator cable, M8-cable socket, angled to open end, 4 pole, 10 m, PP-EPDM, gray, 4 A, 1406857

Order No.: 61P6160
EAN: 4046356781794
MPN:
1406857
SAC-4P-10,0-600/M 8FR-2L FB
Series: SAC-4P

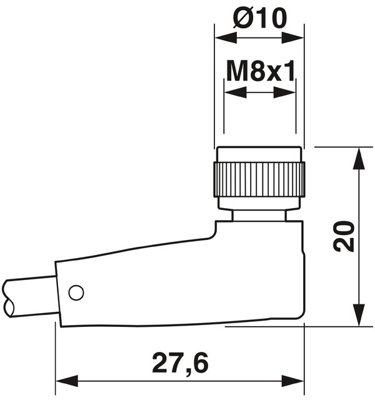

1406857 Phoenix Contact Sensor-Actuator Cables Image 1
1406857 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
46.7194 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
46.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
46.7194 €

Sensor/actuator cable, 1406857, Phoenix Contact

Sensor/actuator cable, 4-position, PP-EPDM halogen-free, Gray RAL 7035, Free cable end, on socket angled, M8, with 2 LEDs, Cable length: 10 m, Hygienic design, with plastic knurl

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Contamination can be detected quickly – thanks to the light color
  • Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications
Filter Property Value
Connection (1) M8-cable socket, angled
Connection (2) open end
Pin number 4 pole
Cable length 10 m
Colour gray
Material PP-EPDM
Degree of protection (IP) IP65/IP67/IP68
LED display Yes
max. Voltage 24 V
Rated current 4 A
Logistics
Property Value
Country of origin PL
Customs tariff number 85444290
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
