1406473 | Phoenix Contact
Sensor actuator cable, M8-cable plug, angled to open end, 3 pole, 1.5 m, PP-EPDM, gray, 4 A, 1406473
Unit Price (€ / pc.)
16.8861 € *
Standard delivery time from the manufacturer is: On Request
Sensor/actuator cable, 1406473, Phoenix Contact

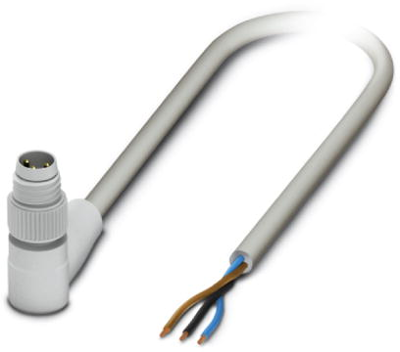

Sensor/actuator cable, 3-position, PP-EPDM halogen-free, Gray RAL 7035, Plug angled M8, on free cable end, Cable length: 1.5 m, Hygienic design, with plastic knurl
Features
- Easy and safe: 100% electrically tested plug-in components
- Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications

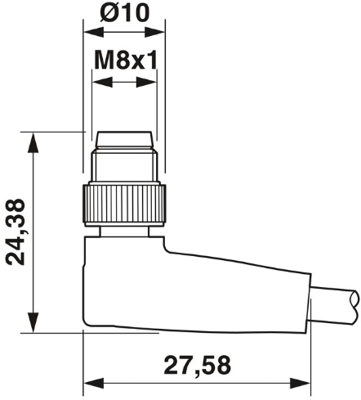

| Connection (1) | M8-cable plug, angled | |
| Connection (2) | open end | |
| Pin number | 3 pole | |
| Cable length | 1.5 m | |
| Colour | gray | |
| Material | PP-EPDM | |
| Degree of protection (IP) | IP65/IP67/IP68 | |
| LED display | No | |
| max. Voltage | 48 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
