1405972 | Phoenix Contact

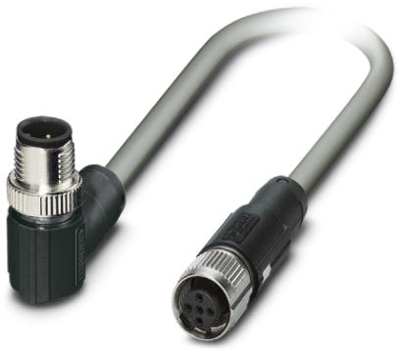

Sensor actuator cable, M12-cable plug, angled to M12-cable socket, straight, 5 pole, 1.5 m, PVC, gray, 4 A, 1405972
Unit Price (€ / pc.)
30.4521 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Bus system cable, 1405972, Phoenix Contact
Bus system cable, CANopen, DeviceNet, 5-position, PVC, Gray, Shielded, Plug angled M12, Coding: A, on socket straight, M12, Coding: A, Cable length: 1.5 m, Connector unshielded
Technical specifications

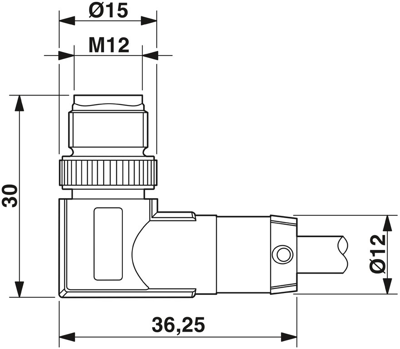

| Connection (1) | M12-cable plug, angled | |

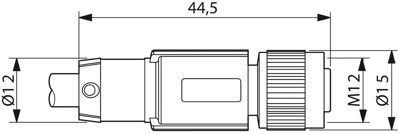

| Connection (2) | M12-cable socket, straight | |
| Pin number | 5 pole | |
| Cable length | 1.5 m | |
| Colour | gray | |
| Material | PVC | |
| Degree of protection (IP) | IP65/IP67/IP68 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Diazene-1,2-dicarboxamide [C,C'-azodi(formamide)] (ADCA) |
| SVHC free | No |
| RoHS conform | Yes |
