1405233 | Phoenix Contact
Sensor actuator cable, M12-flange plug, straight to open end, 4 pole, 0.5 m, 4 A, 1405233
Unit Price (€ / pc.)
32.1062 € *
Available: 5 pcs.
Available in 10 days: 37 pcs.
Leadtime: 2 Weeks **
Total Price:
32.11 € *
Price list
Quantity
Price per unit*
1 pcs.
32.1062 €
5 pcs.
30.1784 €
15 pcs.
29.0241 €
50 pcs.
27.7389 €
150 pcs.
26.5846 €
*incl. VAT plus shipping costs
**Subject to prior sale

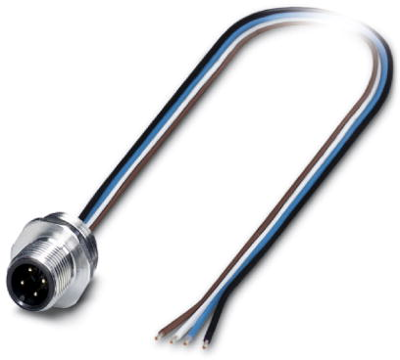

Sensor-actuator connector, 1405233, Phoenix Contact
Sensor/actuator flush-type plug, 4-pole, stainless steel, front/screw mounting with M16 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm².
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For signal transmission
- For data transimission
- For power transimission
Technical specifications
| Connection (1) | M12-Flanschstecker, gerade | |
| Connection (2) | offenes Ende | |
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP65/IP67/IP69/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
