1404179 | Phoenix Contact
Sensor actuator cable, M8-cable plug, straight to open end, 8 pole, 10 m, PUR, black, 1.5 A, 1404179
Order No.: 61P7681
EAN: 4046356680929
MPN:
1404179
SAC-8P-M 8MS/10,0-PUR
Unit Price (€ / pc.)
50.0990 € *
Available: 0 pcs.
Leadtime: On Request **

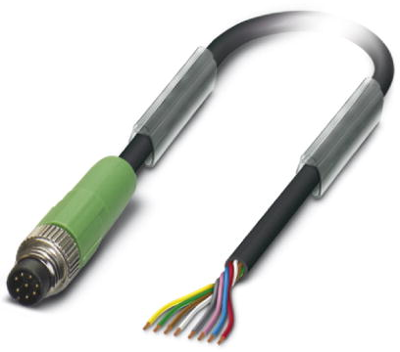

Sensor/actuator cable, 1404179, Phoenix Contact
Sensor/actuator cable, 8-position, PUR halogen-free, Black-gray RAL 7021, Plug straight M8, on free cable end, Cable length: 10 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save space – with high-pos. Connectors
Technical specifications
| Connection (1) | M8-cable plug, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 10 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
