1404036 | Phoenix Contact

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 4 pole, 3 m, PP-EPDM, gray, 4 A, 1404036

Order No.: 61P6795
EAN: 4046356677790
MPN:
1404036
SAC-4P-MS/3,0-600/M12FR-3L FB
Series: SAC-4P

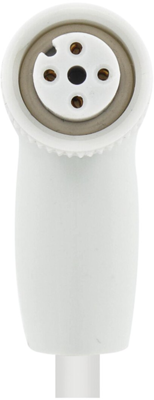

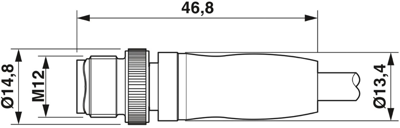

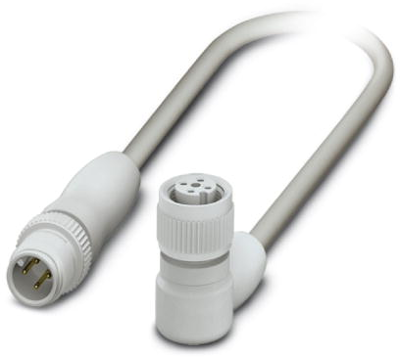

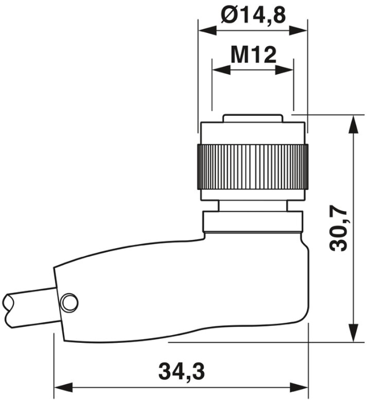

1404036 Phoenix Contact Sensor-Actuator Cables Image 1
1404036 Phoenix Contact Sensor-Actuator Cables Image 2
1404036 Phoenix Contact Sensor-Actuator Cables Image 3
1404036 Phoenix Contact Sensor-Actuator Cables Image 4
Image may differ
Unit Price (€ / pc.)
41.8642 € *
Available in 10 days: 1 pcs. - if ordered today
Total Price:
41.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
41.8642 €

Sensor/actuator cable, 1404036, Phoenix Contact

Sensor/actuator cable, 4-position, PP-EPDM, Gray RAL 7035, Plug straight M12, Coding: A, on socket angled, M12, Coding: A, with 3 LEDs, Cable length: 3 m, Hygienic design, with plastic knurl

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Contamination can be detected quickly – thanks to the light color
  • Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications
Filter Property Value
Connection (1) M12-cable plug, straight
Connection (2) M12-cable socket, angled
Pin number 4 pole
Cable length 3 m
Colour gray
Material PP-EPDM
Degree of protection (IP) IP65/IP67/IP68
LED display Yes
max. Voltage 24 V
Rated current 4 A
Logistics
Property Value
Customs tariff number 85444290
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
