1404035 | Phoenix Contact

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 4 pole, 1.5 m, PP-EPDM, gray, 4 A, 1404035

Order No.: 61P6785
EAN: 4046356677783
MPN:
1404035
SAC-4P-MS/1,5-600/M12FR-3L FB
Series: SAC-4P

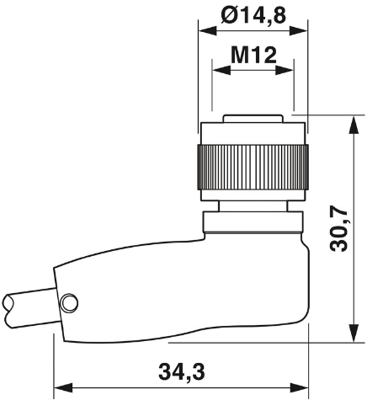

1404035 Phoenix Contact Sensor-Actuator Cables Image 1

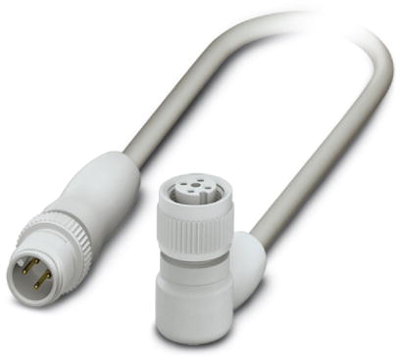

1404035 Phoenix Contact Sensor-Actuator Cables Image 2

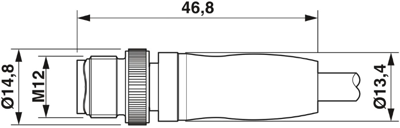

1404035 Phoenix Contact Sensor-Actuator Cables Image 3

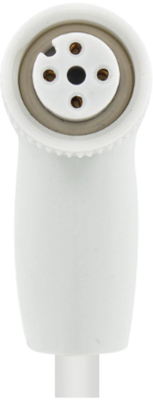

1404035 Phoenix Contact Sensor-Actuator Cables Image 4
Image may differ
Unit Price (€ / pc.)
38.1157 € *
Available in 10 days: 6 pcs. - if ordered today
Total Price:
38.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.1157 €

Sensor/actuator cable, 1404035, Phoenix Contact

Sensor/actuator cable, 4-position, PP-EPDM, Gray RAL 7035, Plug straight M12, Coding: A, on socket angled, M12, Coding: A, with 3 LEDs, Cable length: 1.5 m, Hygienic design, with plastic knurl

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Contamination can be detected quickly – thanks to the light color
  • Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications
Filter Property Value
Connection (1) M12-cable plug, straight
Connection (2) M12-cable socket, angled
Pin number 4 pole
Cable length 1.5 m
Colour gray
Material PP-EPDM
Degree of protection (IP) IP65/IP67/IP68
LED display Yes
max. Voltage 24 V
Rated current 4 A
Logistics
Property Value
Customs tariff number 85444290
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
