1404012 | Phoenix Contact

Sensor actuator cable, M12-cable socket, straight to open end, 4 pole, 5 m, PP-EPDM, gray, 4 A, 1404012

Order No.: 61P6248
EAN: 4046356677585
MPN:
1404012
SAC-4P-5,0-600/M12FS FB
Series: SAC-4P

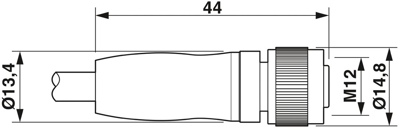

1404012 Phoenix Contact Sensor-Actuator Cables Image 1

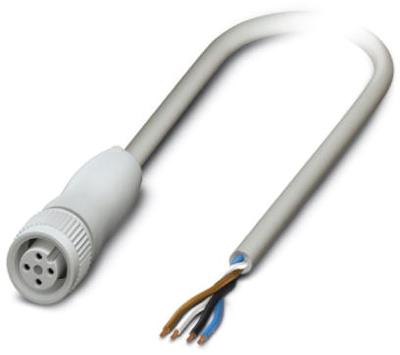

1404012 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
26.0134 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
26.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.0134 €

Sensor/actuator cable, 1404012, Phoenix Contact

Sensor/actuator cable, 4-position, PP-EPDM, Gray RAL 7035, Free cable end, on socket straight, M12, Coding: A, Cable length: 5 m, Hygienic design, with plastic knurl

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Contamination can be detected quickly – thanks to the light color
Technical specifications
Filter Property Value
Connection (1) M12-cable socket, straight
Connection (2) open end
Pin number 4 pole
Cable length 5 m
Colour gray
Material PP-EPDM
Degree of protection (IP) IP65/IP67/IP68
LED display No
max. Voltage 250 V
Rated current 4 A
Logistics
Property Value
Country of origin PL
Customs tariff number 85444290
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
