1403973 | Phoenix Contact

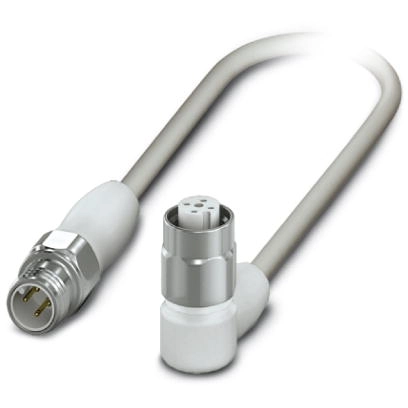

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 4 pole, 0.6 m, PP-EPDM, gray, 4 A, 1403973
Order No.: 61P6554
EAN: 4046356677295
MPN:
1403973
SAC-4P-M12MS/0,6-600/M12FR HD
Sensor/actuator cable, 1403973, Phoenix Contact
Sensor/actuator cable, 4-position, PP-EPDM halogen-free, Gray RAL 7035, Male straight M12, A-coded, to female angled M12, A-coded, Cable length: 0.6 m, Hygienic design, with stainless steel knurl
Features
- Easy and safe: 100% electrically tested plug-in components
- Easy cleaning due to special hygienic design
- Stainless steel type 1.4404 used to provide corrosion protection for all exposed metal parts
- Contamination can be detected quickly – thanks to the light color
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | M12-cable socket, angled | |
| Pin number | 4 pole | |
| Cable length | 0.6 m | |
| Colour | gray | |
| Material | PP-EPDM | |
| Degree of protection (IP) | IP65/IP67/IP68 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
