1402551 | Phoenix Contact

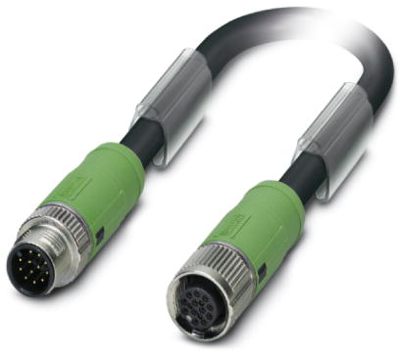

Sensor actuator cable, M12-cable socket, straight to M12-cable socket, straight, 12 pole, 3 m, PUR/PVC, black, 1.5 A, 1402551
Order No.: 61P4931
EAN: 4046356622615
MPN:
1402551
SAC-12P-MS/ 3,0-35T/FS SH SCO
Unit Price (€ / pc.)
122.808 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor/actuator cable, 1402551, Phoenix Contact
Sensor/actuator cable, 12-position, PUR/PVC, Black RAL 9005, Shielded, Plug straight M12 SPEEDCON, Coding: A, on socket straight, M12 SPEEDCON, Coding: A, Cable length: 3 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save time, thanks to installation with SPEEDCON fast locking system
- Save space – with high-pos. Connectors
- Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Technical specifications
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | M12-cable socket, straight | |
| Colour | black | |
| Cable length | 3 m | |
| LED display | No | |
| Material | PUR/PVC | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A | |
| Pin number | 12 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
