1402422 | Phoenix Contact
Sensor actuator cable, M12-cable plug, straight to M12-cable socket, straight, 17 pole, 10 m, PUR/PVC, black, 1.5 A, 1402422
Unit Price (€ / pc.)
220.3880 € *
Available in 10 days: 38 pcs. - if ordered today
Sensor/actuator cable, 1402422, Phoenix Contact

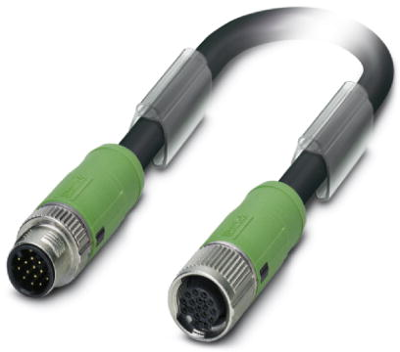

Sensor/actuator cable, 17-position, PUR/PVC, RAL 9005 (Black), Shielded, Straight M12 SPEEDCON male plug (A-coded) to straight M12 SPEEDCON female plug, Cable length: 10 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save time, thanks to installation with SPEEDCON fast locking system
- Save space – with high-pos. Connectors
- Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Technical specifications

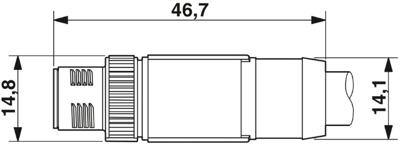

| Connection (1) | M12-cable plug, straight | |

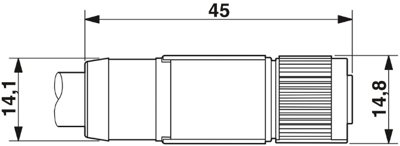

| Connection (2) | M12-cable socket, straight | |
| Pin number | 17 pole | |
| Cable length | 10 m | |
| Colour | black | |
| Material | PUR/PVC | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
