1401340 | Phoenix Contact
Sensor actuator cable, valve connector DIN shape B to open end, 3 pole, 1.5 m, PUR, black, 1 A, 1401340
Order No.: 61P5108
EAN: 4046356924597
MPN:
1401340
SAC-3P- 1,5-PUR/BI-1L-R-ES
Unit Price (€ / pc.)
46.7194 € *
Available: 0 pcs.
Leadtime: On Request **

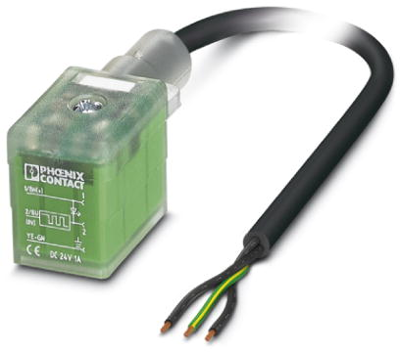

Sensor/actuator cable, 1401340, Phoenix Contact
Sensor/actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on valve connector BI (11 mm), with 1 LED, Connected with freewheeling diode, Cable length: 1.5 m, with holding current limiting device for energy reduction
Technical specifications
| Connection (1) | valve connector DIN shape B | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 1.5 m | |
| LED display | Yes | |
| Material | PUR | |
| max. Voltage | 24 V | |
| Rated current | 1 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
