1349878 | Phoenix Contact

Sensor actuator cable, cable plug, straight to open end, 3 pole, PPE, black, 32 A, 1349878

Order No.: 64P2198
EAN: 4063151668099
MPN:
1349878
PRC 3-FT25-MC4-300
Series: PRC
1349878 Phoenix Contact Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
22.7536 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2,275.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
22.7536 €

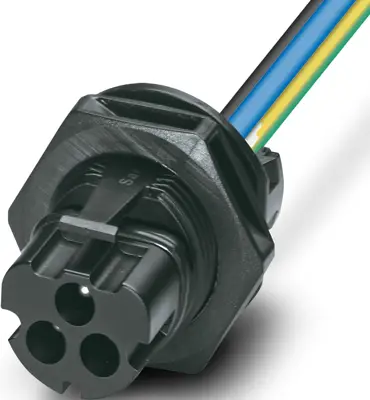

Device connector assembled, 1349878, Phoenix Contact

Device connector rear mounting, Range of articles: PRC 35, housing material: PPE, color: black, number of positions: 3, max. conductor cross section: 4 mm², rated voltage: 690 V AC, rated current: 32 A, Connection method: Crimp connection, Contact connection type: Pin.

Features

  • Up to 75% smaller in size than industrial connectors with the same rating
  • Locking mechanism can be unlocked manually or using a tool
  • Suitable for applications in atmospheres containing salt and in direct sunlight
  • Ideal for indoor and outdoor use due to weatherproof materials
Technical specifications
Colour black
LED display No
max. Voltage 690 V
Degree of protection (IP) IP65/IP66/IP68/IP69K
Rated current 32 A
Connection (2) open end
Pin number 3 pole
Material PPE
Connection (1) cable plug, straight
Logistics
Country of origin PL
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
