1077308 | Phoenix Contact

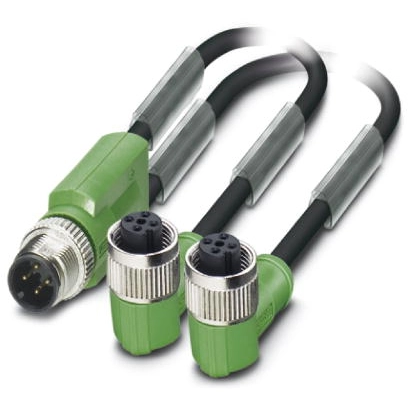

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 3 pole, 0.3 m, PUR, black, 4 A, 1077308
Order No.: 61P5762
EAN: 4055626790305
MPN:
1077308
SAC-3P-M12Y/2X0,3-PUR/M12FR
Sensor/actuator cable, 1077308, Phoenix Contact
Sensor/actuator cable, 3-position, PUR halogen-free, black-grey RAL 7021, plug straight M12, A-coded, to socket angled M12, A-coded and socket angled M12, A-coded, cable length: 0.3 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | M12-cable socket, angled | |
| Pin number | 3 pole | |
| Cable length | 0.3 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67/IP68 | |
| LED display | No | |
| max. Voltage | 48 V | |
| Rated current | 4 A |
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
