1069456 | Phoenix Contact

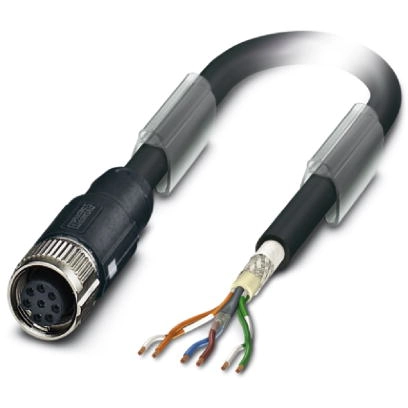

Sensor actuator cable, M12-cable socket, straight to open end, 6 pole, 20 m, TPE, black, 2 A, 1069456
Order No.: 61P7556
EAN: 4055626746203
MPN:
1069456
SAC-6P-20,0-970/M12FS
Bus system cable, 1069456, Phoenix Contact
Bus system cable, VARAN (100 Mbps), 6-position, SANTOPRENE halogen-free/TPE halogen-free, Black RAL 9005, Shielded, Free cable end, on socket straight, M12, Coding: A, Cable length: 20 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 6 pole | |
| Cable length | 20 m | |
| Colour | black | |
| Material | TPE | |
| Degree of protection (IP) | IP65 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
