1415210 | Phoenix Contact

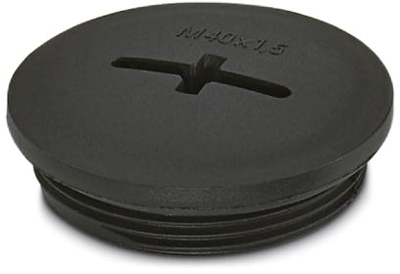

Locking screw, Slotted/crosstip, M40, Ø 46 mm, 13 mm, polyamide
Order No.: 60P6536
EAN: 4055626038544
MPN:
1415210
A-INSP-M40-65N-P-BK
Unit Price (€ / pc.)
1.071 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Screw plug A-INSP-M40-65N-P-BK
Screw plug, material screw connection: PA, PA, connection thread: M40 x 1,5, color: deep black RAL 9005, with O-ring
The technical features of 1415210 from Phoenix Contact at a glance
- Output of the dimensional standard: not available
- Item Designation: A-INSP-M40-65N-P-BK
- Drive size: not applicable
- Tolerance specification (based on standard): not applicable
- Impact resistant available: No
- Screw length: 13 mm
- Material (according to standard): not available
- Material: Polyamid
- Product class (based on standard): not applicable
- Product class: not applicable
- Surface protection (based on standard): not available
- Surface protection: Not relevant
- Head diameter of the screw: 46 mm
- Thread design as code letter (based on standard): not applicable
- Thread pitch at nut end: 1.5 mm
- Thread pitch: 1.5 mm
- Nominal thread size NPT/gas pipe thread (imperial): Not relevant
- Nominal thread size PG (metric : M40
- Thread direction: right
- Thread type: metric
- Thread size: M40
- Order suffix (based on standard): not applicable
- Order suffix coded: not applicable
- Color: tiefschwarz RAL 9005
- Withworth pipe thread (d1): not applicable
- glass fiber reinforced: No
- halogen free: Yes
Technical specifications
| Version | locking screw | |
| diameter | 46 mm | |
| Spindle drive type | Slotted/crosstip | |
| Thread size | M40 | |
| Length | 13 mm | |
| Material | polyamide |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
