1415208 | Phoenix Contact
Locking screw, Slotted/crosstip, M32, Ø 37 mm, 12 mm, polyamide
Order No.: 60P6535
EAN: 4055626038537
MPN:
1415208
A-INSP-M32-65N-P-BK
Unit Price (€ / pc.)
0.714 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

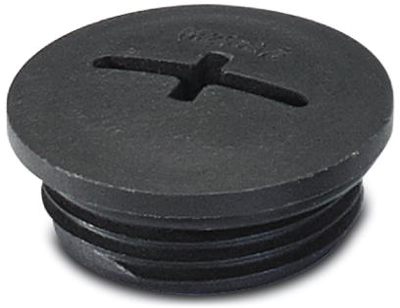

Screw plug A-INSP-M32-65N-P-BK
Screw plug, material screw connection: PA, PA, connection thread: M32 x 1,5, color: deep black RAL 9005, with O-ring
The technical features of 1415208 from Phoenix Contact at a glance
- Color: deep black RAL 9005
- Order suffix coded: not applicable
- Order suffix (based on standard): not applicable
- Thread design as code letter (based on standard): not applicable
- Nominal thread size NPT/gas pipe thread (imperial): Not relevant
- Thread type: metric
- Nominal thread size PG (metric : M32
- Thread direction: right
- Thread pitch: 1.5 mm
- Thread pitch at nut end: 1.5 mm
- Thread size: M32
- Head diameter of the screw: 37 mm
- Surface protection (based on standard): not available
- Surface protection: Not relevant
- Product class (based on standard): not applicable
- Product class: not applicable
- Material: Polyamid
- Material (according to standard): not available
- Screw length: 12 mm
- Impact resistant available: No
- Tolerance specification (based on standard): not applicable
- Drive size: not applicable
- Item Designation: A-INSP-M32-65N-P-BK
- Output of the dimensional standard: not available
- glass fiber reinforced: No
- halogen free: Yes
- Withworth pipe thread (d1): not applicable
Technical specifications
| Version | locking screw | |
| diameter | 37 mm | |
| Spindle drive type | Slotted/crosstip | |
| Thread size | M32 | |
| Length | 12 mm | |
| Material | polyamide |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
