1411108 | Phoenix Contact
Locking screw, external hexagon, M25, Ø 33 mm, 24 mm, stainless steel
Order No.: 60P6277
EAN: 4046356922234
MPN:
1411108
A-EXSH-M25-68L-S-S
Unit Price (€ / pc.)
49.3969 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

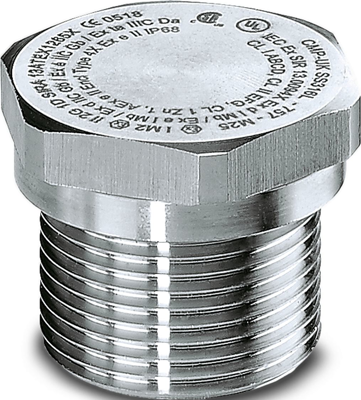

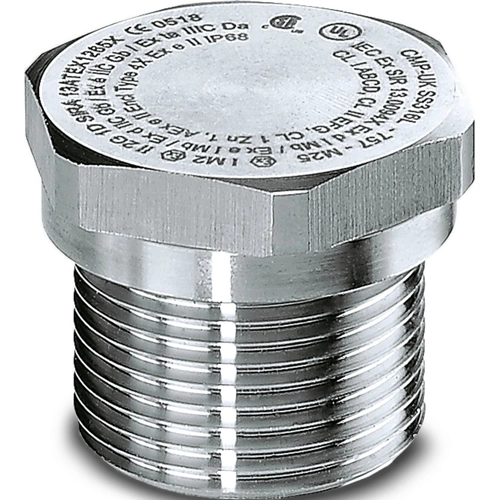

Screw plug A-EXSH-M25-68L-S-S
Screw plug, Material screw connection: stainless steel 316L, stainless steel 316L, Application: Ex, Connection thread: M25 x 1.5, Color: silver
The technical features of 1411108 from Phoenix Contact at a glance
- Head diameter of the screw: 33 mm
- Thread pitch: 1.5 mm
- Thread type: metric
- Thread design as code letter (based on standard): not applicable
- Nominal thread size NPT/gas pipe thread (imperial): Not relevant
- Nominal thread size PG (metric) : M25
- Thread pitch at nut end: 1.5 mm
- Thread size: M25
- Thread direction: right
- Surface protection (based on standard): not available
- Surface protection: Not relevant
- Product class: not applicable
- Product class (based on standard): not applicable
- Order suffix coded: not applicable
- Order suffix (based on standard): not applicable
- Color: silver
- Item Designation: A-EXSH-M25-68L-S-S
- Output of the dimensional standard: not available
- Drive size: not applicable
- Material (according to standard): not available
- Material: Edelstahl 316L
- Screw length: 24 mm
- Width across flats: 30 mm
- Impact resistant available: No
- Tolerance specification (based on standard): not applicable
- Withworth pipe thread (d1): not applicable
- glass fiber reinforced: No
- halogen free: No
Technical specifications
| Version | locking screw | |
| diameter | 33 mm | |
| Spindle drive type | external hexagon | |
| Thread size | M25 | |
| Length | 24 mm | |
| Material | stainless steel |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 73269098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
