2981376 | Phoenix Contact
Safe coupling relay, 2 Form C (NO/NC), 120 V, 2981376
Unit Price (€ / pc.)
39.0082 € *
Available in 5 Days: 1,016 pcs. - if ordered today

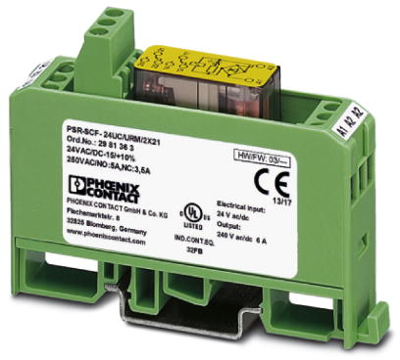

Coupling relay, 2981376, Phoenix Contact
Safe coupling relay with force-guided contacts, 2 changeover contacts, 1-channel, fixed screw terminal block, width: 17.5 mm.
Features
- Safe readback due to force-guided signal contact in accordance with EN 50205
- Easy proof test according to IEC 61508 thanks to integrated signal contact
- 1 or 2-channel control
- 2 changeover contacts (EN 50205 type B)
- 120 V version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage AC | 120 V | |
| Height | 75 mm | |
| Contact type | 2 Form C (NO/NC) | |
| Version | safe coupling relay | |
| Assembly | mounting rail | |
| Depth | 60.5 mm | |
| Width | 17.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
