Inline terminal, 500 kbit/s, 230 VAC, 2897716
Unit Price (€ / pc.)
510.5695 € *
Standard delivery time from the manufacturer is: On Request

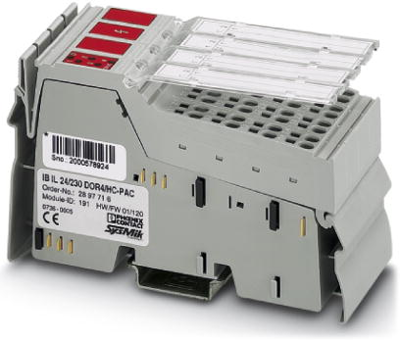

Relay module, 2897716, Phoenix Contact
Inline, Relay terminal, Relay outputs: 4 (floating), N/O contact, 24 VDC, 230 VAC, High inrush current, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connectors and marking fields.
Features
- Floating connections for 4 actuators
- Nominal current 10 A
- Safe isolation
- Low power consumption through use of bistable relays
- Diagnostic and status indicators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | inline terminal | |
| Contact type | 4 Form A (N/O) | |
| Number of outputs | 4 | |
| Control Voltage | 7.5 VDC | |
| Rated current | 10 A | |
| Switching Voltage (AC) | 230 V | |
| Switching Voltage (DC) | 250 V | |
| Data transmission rate | 500000 mb/s | |
| Assembly | rail mounting | |
| Width | 119.8 mm | |
| Height | 48.8 mm | |
| Depth | 71.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
