Inline terminal, 500 kbit/s, 24-48 VDC, 2863119
As a private customer, you can buy this item as soon as we have it back in stock.

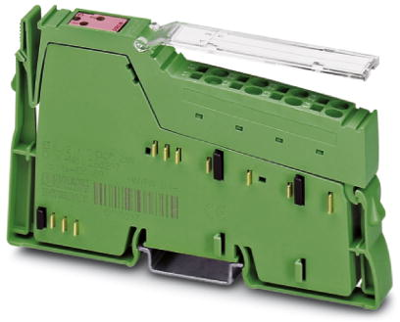

Relay module, 2863119, Phoenix Contact
Inline, Relay terminal, Relay outputs: 2 (floating), Changeover contact, 24 VAC, 48 VDC, for switching ohmic loads, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connector and labeling field.
Features
- 2 relays
- Floating connections for 2 actuators
- Nominal current at the output: 2 A
- Total current of the terminal: 4 A
- Diagnostic and status indicators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | inline terminal | |
| Contact type | 2 Form C (NO/NC) | |
| Number of outputs | 2 | |
| Control Voltage | 7.5 VDC | |
| Rated current | 2 A | |
| Switching Voltage (AC) | 30 V | |
| Switching Voltage (DC) | 60 V | |
| Data transmission rate | 500000 mb/s | |
| Assembly | rail mounting | |
| Width | 12.2 mm | |
| Height | 119.8 mm | |
| Depth | 71.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
