2700608 | Phoenix Contact

I/O module, 100 Mbit/s, 230 VAC, 2700608

Order No.: 64P8483
EAN: 4046356916486
MPN:
2700608
AXL F DOR4/2 AC/220DC 1F
Series: Axioline F
2700608 Phoenix Contact Relay modules
Image may differ
Unit Price (€ / pc.)
386.274 € *
Available in 10 days: 252 pcs. - if ordered today
Total Price:
386.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
386.274 €

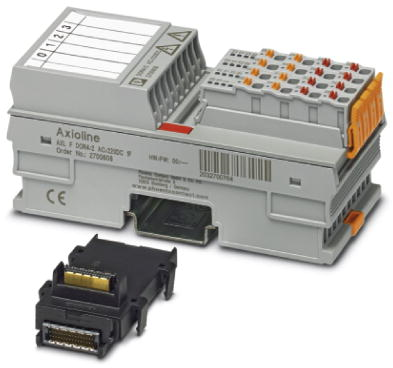

Relay module, 2700608, Phoenix Contact

Axioline F, Relay module, Relay outputs: 4 (floating), N/O contact, 220 VDC, 230 VAC, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • Meets the requirements of IEC 61850-3 and IEEE 1613
  • 4 monostable relays
  • Floating connections for 4 actuators
  • Nominal current of each output: 8 A
  • Total current of the module: 32 A (4 x 8 A)
  • Device rating plate stored
Technical specifications
Filter Property Value
Version I/O module
Contact type 4 Form A (N/O)
Number of outputs 4
Control Voltage 5 VDC
Rated current 8 A
Switching Voltage (AC) 240 V
Switching Voltage (DC) 250 V
Data transmission rate 100000000 mb/s
Assembly rail mounting
Width 53.6 mm
Height 126.1 mm
Depth 54 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
