2319430 | Phoenix Contact

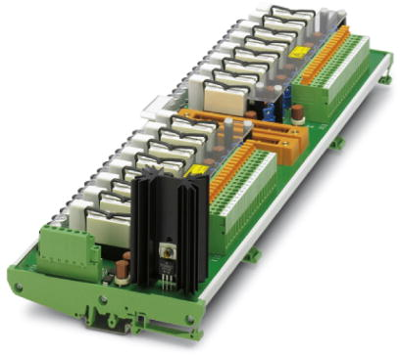

Name: Relay module, 16 Form A (N/O), 4 A, 230 V (DC), 230 V (AC), monostable, 2319430
Brand: Phoenix Contact
SKU: 64P4487
Availability: InStock

Relay module, 16 Form A (N/O), 4 A, 230 V (DC), 230 V (AC), monostable, 2319430

Order No.: 64P4487

EAN: 4046356550031

MPN:

2319430

UM-2KS50-RM/MR/SI/1/SDV541

Series: UM

Image may differ

Key Specification:

Version relay module

Contact type 16 Form A (N/O)

Number of outputs 16

Control Voltage 24 VDC

Rated current 4 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1,820.224 € *

Standard delivery time from the manufacturer is: 10 Weeks

Total Price:

1,820.22 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Industrial relay, 2319430, Phoenix Contact

Features

1 N/O contact per channel
Contact material AgNi (90/10) gold-plated
Overvoltage category II

Technical specifications

Filter	Property	Value
	Depth	67 mm
	Switching Voltage (DC)	230 V
	Contact type	16 Form A (N/O)
	Control Voltage	24 VDC
	Height	127.5 mm
	Assembly	rail mounting
	Width	424.5 mm
	Number of outputs	16
	Switching Voltage (AC)	230 V
	Version	relay module
	Rated current	4 A
