1641510 | Phoenix Contact

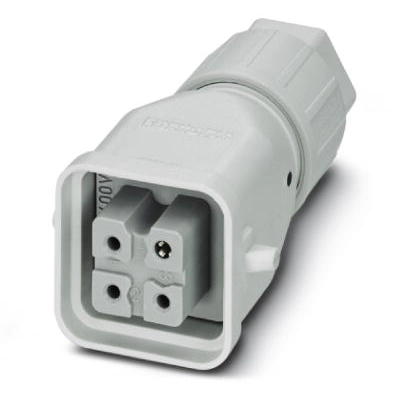

Connector kit, size D7, 3 pole + PE , IP65, 1641510

Order No.: 62P1143
EAN: 4017918889920
MPN:
1641510
HC-A3-BUQ1,5-TFL-G-PA
Series: HC-A
1641510 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
14.1253 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
14.13 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1253 €
10 pcs.
12.4117 €
50 pcs.
11.5787 €
150 pcs.
11.0551 €
500 pcs.
10.5077 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector Set, 1641510, Phoenix Contact

HEAVYCON QUICKON sleeve housing A3, for single locking latch, 3-pos., with PE connection, socket, QUICKON connection, straight cable outlet.

Technical Data

  • Connection type of the conductor: Quick connection
  • min. Operating temperature: -25 °C
  • max. Operating temperature: 80 °C
  • Housing material: PA
  • Degree of protection: IP65
  • Rated current: 10 A
  • Rated voltage: 230 V
  • Rated impulse voltage: 4 kV
  • PE contact: true
  • Length: 26.5 mm
  • Width: 34 mm
  • Height: 66 mm
Technical specifications
Filter Property Value
Version connector kit
Degree of protection (IP) IP65
Type of locking longitudinal bow locking
Contact connection quick connection
Shell size D7
Shell Material PA
Pin number 3 pole
PE contact Yes
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
