1416355 | Phoenix Contact

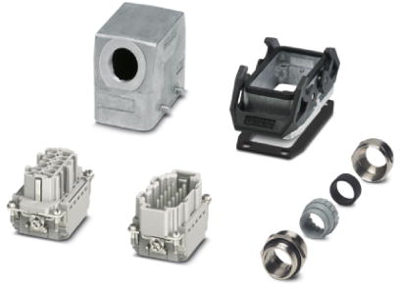

Connector kit, size B10, 10 pole + PE , IP66, 1416355
Unit Price (€ / pc.)
83.1215 € *
Available in 10 days: 15 pcs. - if ordered today
Connector Set, 1416355, Phoenix Contact
Connector set, number of positions: 10, material: Die-cast aluminum, salt water resistant, connection method: Push-in connection, connection cross section: AWG 26- 14
Technical Data
- Connection type of the conductor: Push-in connection
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Housing material: Aluminium
- Number of contacts: 10
- Degree of protection: IP66
- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- PE contact: true
- Length: 93.5 mm
- Width: 53 mm
- Height: 87.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 10 pole | |
| PE contact | Yes | |
| Contact connection | push-in | |
| Cable Outlet | M25, angled | |
| Version | connector kit | |
| Shell size | B10 | |
| Shell Material | die-cast aluminum | |
| Degree of protection (IP) | IP66 | |
| Type of locking | cross bow locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
