1416354 | Phoenix Contact

Connector kit, size B10, 10 pole + PE , IP66, 1416354

Order No.: 62P2772
EAN: 4055626071251
MPN:
1416354
HC-STA-B10PT-BWSC-LS-M25-ELCAL
Series: HC-STA
1416354 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
91.154 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
91.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
91.154 €

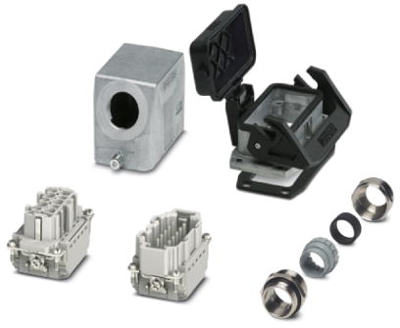

Connector Set, 1416354, Phoenix Contact

Connector set, number of positions: 10, material: Die-cast aluminum, salt water resistant, connection method: Push-in connection, connection cross section: AWG 26- 14

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 10
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 93.5 mm
  • Width: 53 mm
  • Height: 87.5 mm
Technical specifications
Cable Outlet M25, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP66
PE contact Yes
Contact connection push-in
Shell size B10
Pin number 10 pole
Version connector kit
Shell Material die-cast aluminum
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
