1416353 | Phoenix Contact
Connector kit, size B6, 6 pole + PE , IP66, 1416353
Unit Price (€ / pc.)
70.805 € *
Standard delivery time from the manufacturer is: 3 Weeks

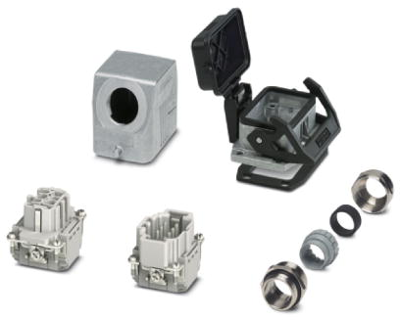

Connector Set, 1416353, Phoenix Contact
Connector set, number of positions: 6, material: Die-cast aluminum, salt water resistant, connection method: Push-in connection, connection cross section: AWG 26- 14, cable outlet: lateral.
Technical Data
- Connection type of the conductor: Push-in connection
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Housing material: Aluminium
- Number of contacts: 6
- Degree of protection: IP66
- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- PE contact: true
- Length: 80.5 mm
- Width: 53 mm
- Height: 82.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable Outlet | M20, angled | |
| Shell Material | die-cast aluminum | |
| Contact connection | push-in | |
| PE contact | Yes | |
| Pin number | 6 pole | |
| Degree of protection (IP) | IP66 | |
| Type of locking | longitudinal bow locking | |
| Shell size | B6 | |
| Version | connector kit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
