1416345 | Phoenix Contact

Connector kit, size B10, 10 pole + PE , IP66, 1416345

Order No.: 62P2773
EAN: 4055626069883
MPN:
1416345
HC-STA-B10PT-BWSC-LT-M25-ELCAL
Series: HC-STA
1416345 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
92.0346 € *
Available in 10 days: 3 pcs. - if ordered today
Total Price:
92.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
92.0346 €

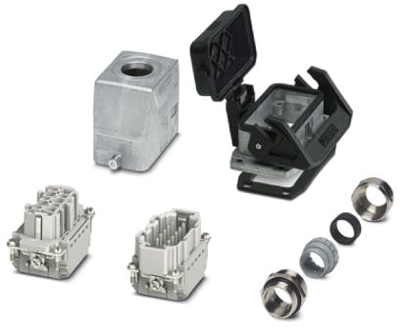

Connector Set, 1416345, Phoenix Contact

Connector set, number of positions: 10, material: Die-cast aluminum, salt water resistant, connection method: Push-in connection, connection cross section: AWG 26- 14

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 10
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 93.5 mm
  • Width: 53 mm
  • Height: 87.5 mm
Technical specifications
Filter Property Value
Pin number 10 pole
PE contact Yes
Contact connection push-in
Cable Outlet M25, straight
Version connector kit
Shell size B10
Shell Material die-cast aluminum
Degree of protection (IP) IP66
Type of locking longitudinal bow locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
