1411493 | Phoenix Contact

Connector kit, size B24, 24 pole + PE , IP66, 1411493

Order No.: 62P2401
EAN: 4046356932936
MPN:
1411493
HC-EVO-B24PT-BWSC-HH-M32ELC-AL
Series: HC-EVO
1411493 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
155.4616 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
155.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
155.4616 €

Connector Set, 1411493, Phoenix Contact

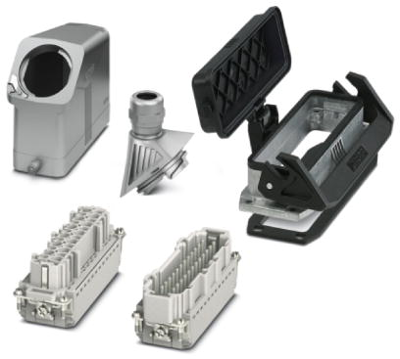

EVO connector set, B24 series, metal housing, consisting of sleeve housing 1411473, panel mounting base 1411330, EVO screw connection 1411440, pin contact insert 1407736, socket contact insert 1407735

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 24
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • Length: 140.5 mm
  • Width: 53 mm
  • Height: 118.5 mm
Technical specifications
Cable Outlet M32, straight
Type of locking longitudinal bow locking
Degree of protection (IP) IP66
PE contact Yes
Contact connection push-in
Shell size B24
Pin number 24 pole
Version connector kit
Shell Material die-cast aluminum
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
