1411492 | Phoenix Contact

Connector kit, size B16, 16 pole + PE , IP66, 1411492

Order No.: 62P2369
EAN: 4046356932929
MPN:
1411492
HC-EVO-B16PT-BWSC-HH-M25ELC-AL
Series: HC-EVO
1411492 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
129.3292 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
129.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
129.3292 €

Connector Set, 1411492, Phoenix Contact

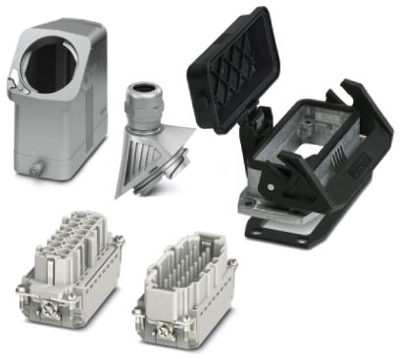

EVO connector set, B16 series, metal housing, consisting of sleeve housing 1411461, panel mounting base 1411325, EVO screw connection 1411446, pin contact insert 1407732, socket contact insert 1407731

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 16
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • Length: 114 mm
  • Width: 53 mm
  • Height: 118.5 mm
Technical specifications
Cable Outlet M25, straight
Type of locking longitudinal bow locking
Degree of protection (IP) IP66
PE contact Yes
Contact connection push-in
Shell size B16
Pin number 16 pole
Version connector kit
Shell Material die-cast aluminum
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
