1411489 | Phoenix Contact

Connector kit, size B16, 16 pole + PE , IP66, 1411489

Order No.: 62P2367
EAN: 4046356932899
MPN:
1411489
HC-EVO-B16PT-BWD-HH-M25ELC-AL
Series: HC-EVO
1411489 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
119.833 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
119.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
119.833 €

Connector Set, 1411489, Phoenix Contact

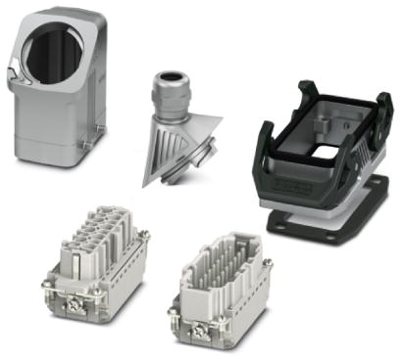

EVO connector set, B16 series, metal housing, consisting of: sleeve housing 1411460, panel mounting base 1411327, EVO screw connection 1411446, pin contact insert 1407732, socket contact insert 1407731

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 16
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 93.5 mm
  • Width: 53 mm
  • Height: 118.5 mm
Technical specifications
Cable Outlet M25, straight
Type of locking cross bow locking
Degree of protection (IP) IP66
PE contact Yes
Contact connection push-in
Shell size B16
Pin number 16 pole
Version connector kit
Shell Material die-cast aluminum
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
