1409752 | Phoenix Contact

Connector kit, size B24, 24 pole + PE , IP65, 1409752

Order No.: 62P2530
EAN: 4046356752701
MPN:
1409752
HC-KIT-B24-R02
Series: HC-KIT
1409752 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
126.8897 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
126.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
126.8897 €

Connector Set, 1409752, Phoenix Contact

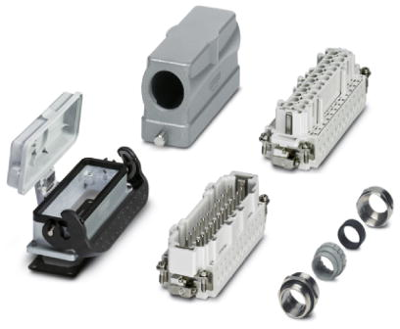

Connector set, consisting of: B24 sleeve housing and panel mounting base, 24-pos. plug and socket insert, M32 cable gland.

Technical Data

  • Connection type of the conductor: Screw connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 24
  • Degree of protection: IP65
  • Rated current: 20 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 140 mm
  • Width: 43 mm
  • Height: 92 mm
Technical specifications
Cable Outlet M32, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
PE contact Yes
Contact connection screw connection
Shell size B24
Pin number 24 pole
Version connector kit
Shell Material die-cast aluminum
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
